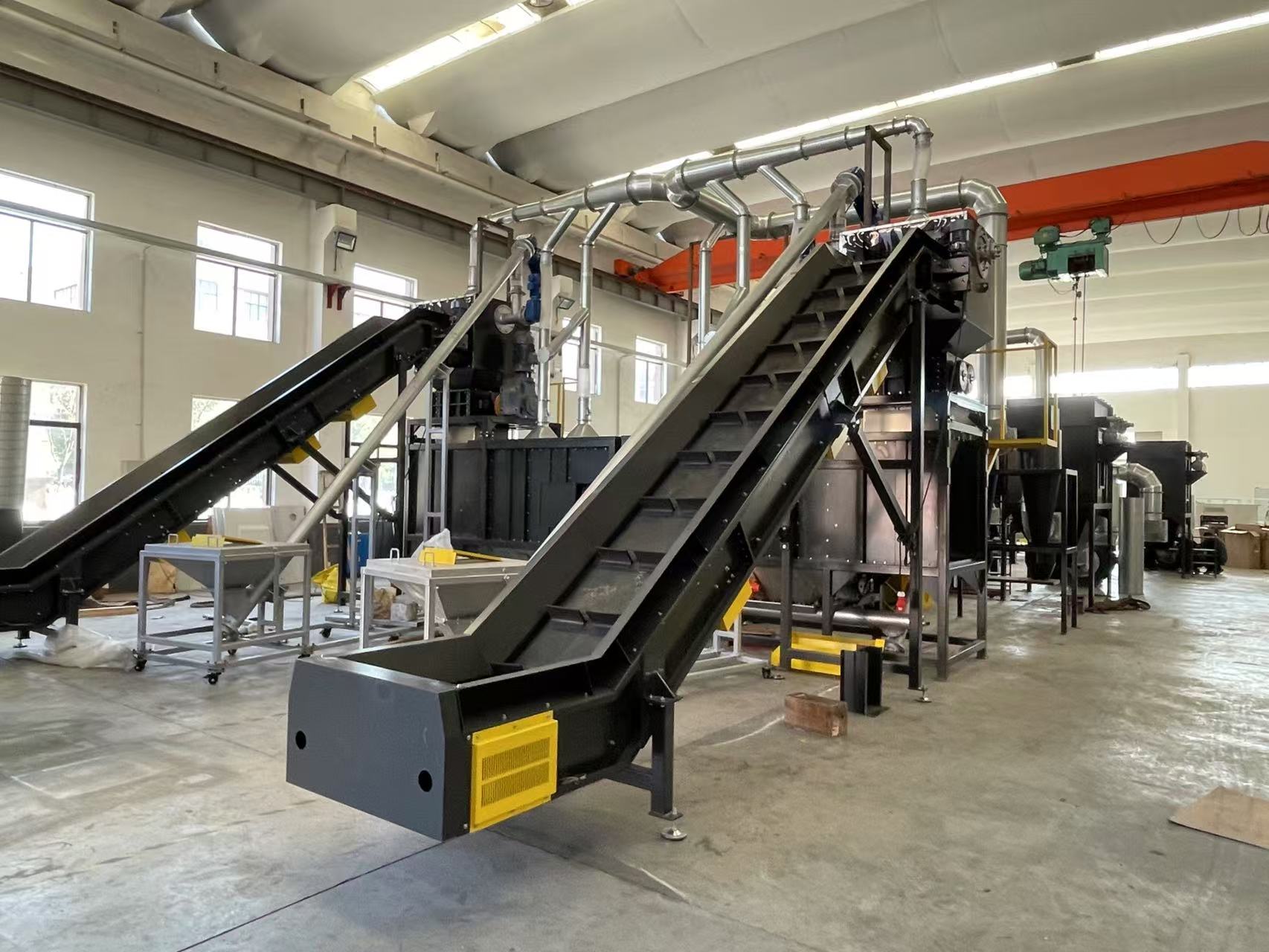

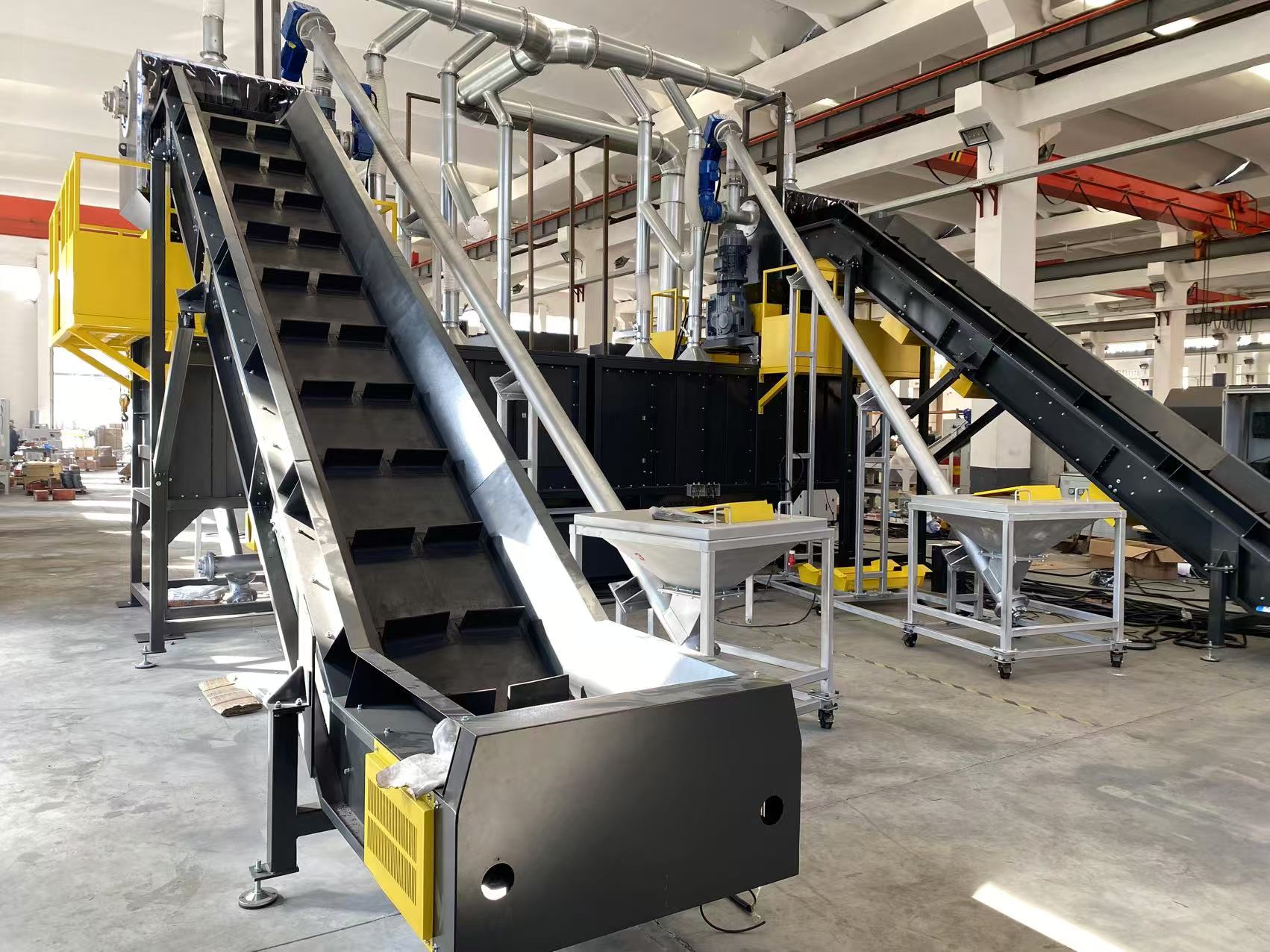

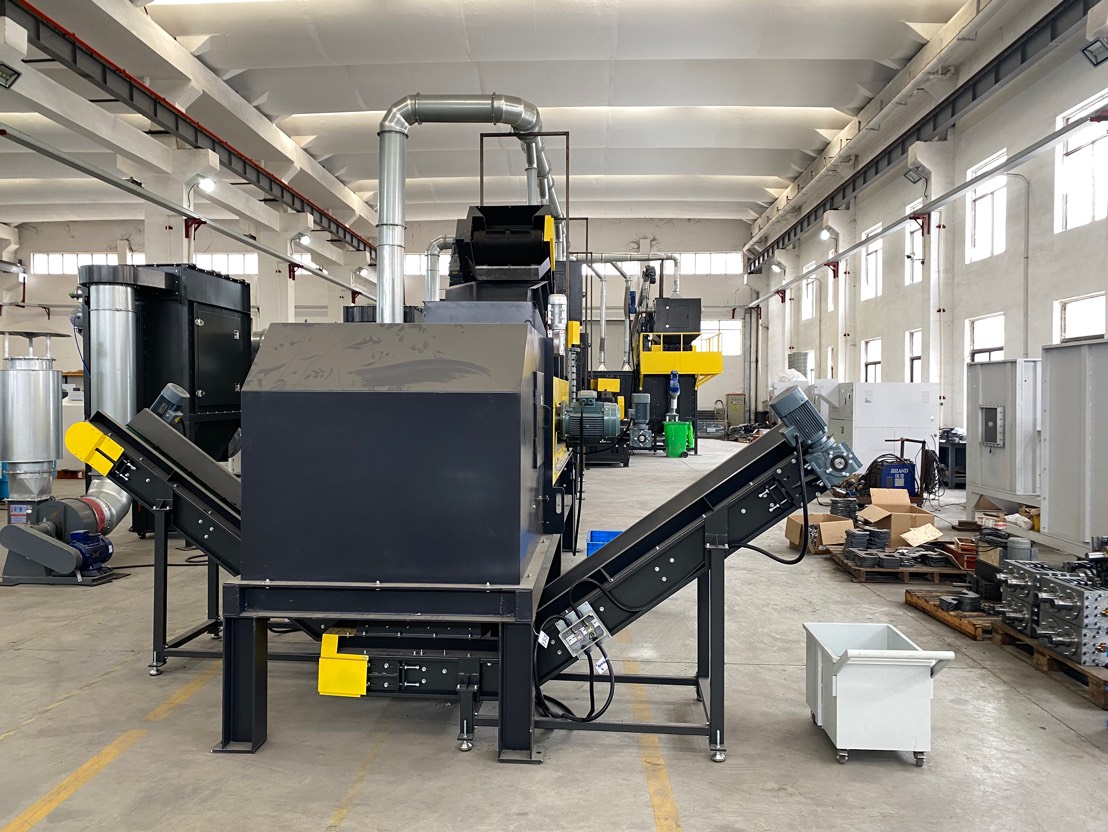

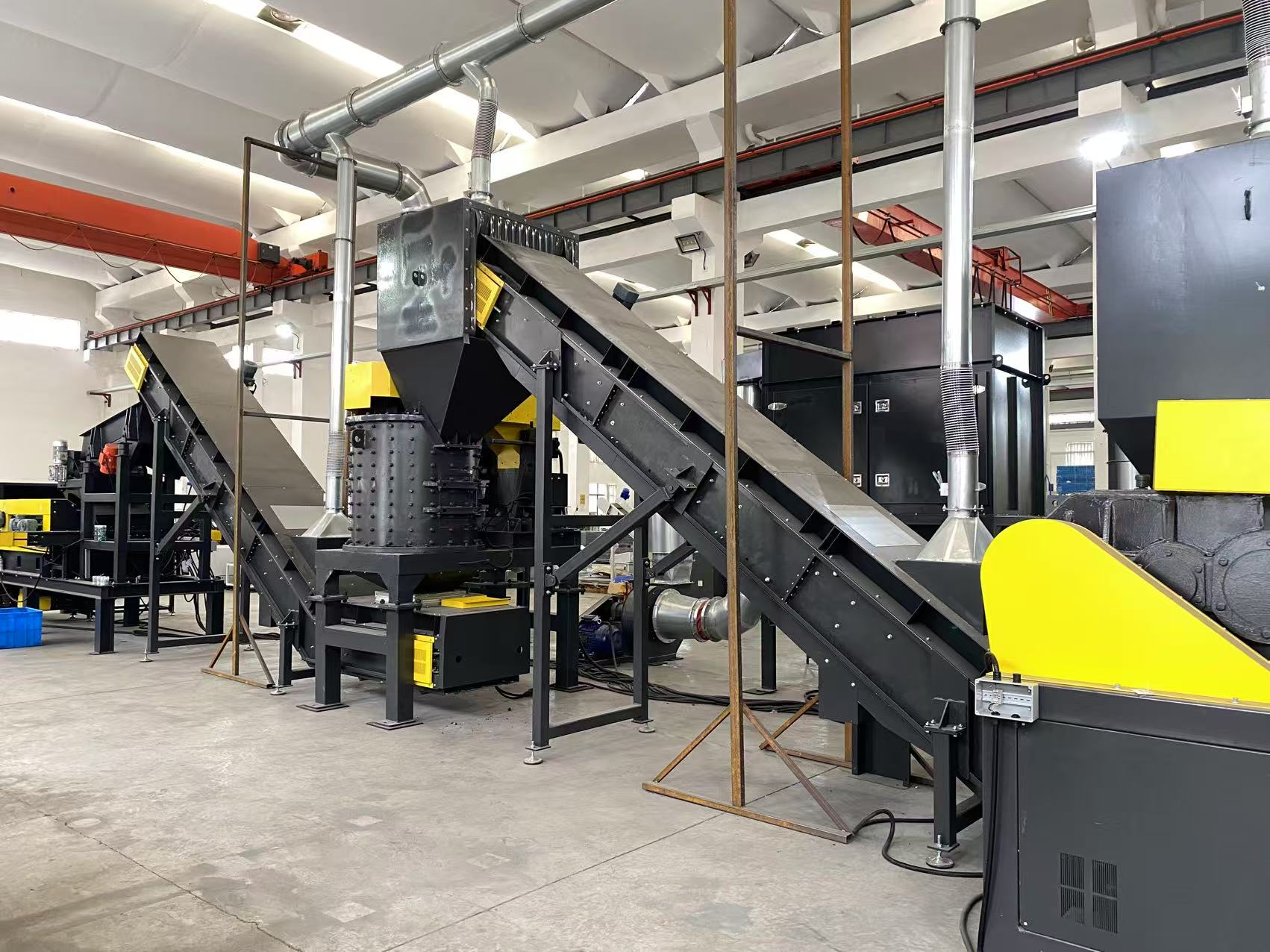

Supu Toner cartridge shredding and separating line
Laser toner cartridge contain toner powder，toner powder is very easy to explosion when it process recycling，Supu Toner cartridge recycling line design with non-explosion technology，safety and high efficiency to process the toner cartridge to be separated aluminum，plastic，iron and toner powder.
The Supu Toner Cartridge Recycling Line revolutionizes waste toner cartridge recycling with explosion-proof technology, safely processing over 1 ton per hour. Designed to handle flammable toner powder, it minimizes explosion risks while efficiently separating aluminum, plastic, iron, and toner. Its integrated dust collection system ensures a clean, safe workspace, protecting workers and enhancing productivity. Ideal for manufacturers and recycling centers, Supu combines high capacity, advanced shredding technology, and eco-friendly benefits, making it the ultimate solution for sustainable toner cartridge recycling.
DataSheet
Model | SPT1000S |
Shredding Material | Waste toner cartridge，small printer，E Waste etc |
Shredding Capacity | 1000kg – 1300kg per hour |
Shredding Result | separated plastic，iron，and aluminum，separated toner powder |
Feeding conveyor width | 600mm |
Dust collector | Collected Toner powder and dust |
Toner collection: | >99% |
Shredding Particle size | Iron <20*80mm，aluminum<20*80mm, plastic<20*80mm |
| Motor Power/Voltage/Frequency | 168KW/ 380, 440, 460, 480, 600V /50 or 60HZ / Three Phase |
| Machine size | L26577*W9000*H5700mm |
Machine Weight | 393000 Kgs |
Final output
 |  |
| Aluminum | Plastic |
 |  |
| Iron | Toner Powder |
