Industrial Toner Cartridge Recycling Line with separate ferrous metal and non-ferrous metals and plastics(500 - 800kg/hr)
The stable growth of modern office equipment has also brought the corresponding toner cartridge, toner drum and other consumables at a rate of 30% per year. These non-degradable consumable materials are discarded as garbage, which not only causes resource waste, but also increasingly threatens people's living environment. Toner and toner cartridge carry or spill carbon powder particles are extremely small, not only pollute the environment, but also harmful to human respiratory system. The toner cartridge consists of plastic, iron, magnetic, aluminums, copper, soft material and toner, Recycling of waste toner cartridge is to shred and recycle these materials and collect the dust and toner powder on the process of shredded the toner cartridge, stabilize or remove harmful components by means of mechanical and physical methods, and reduce environmental pollution. |

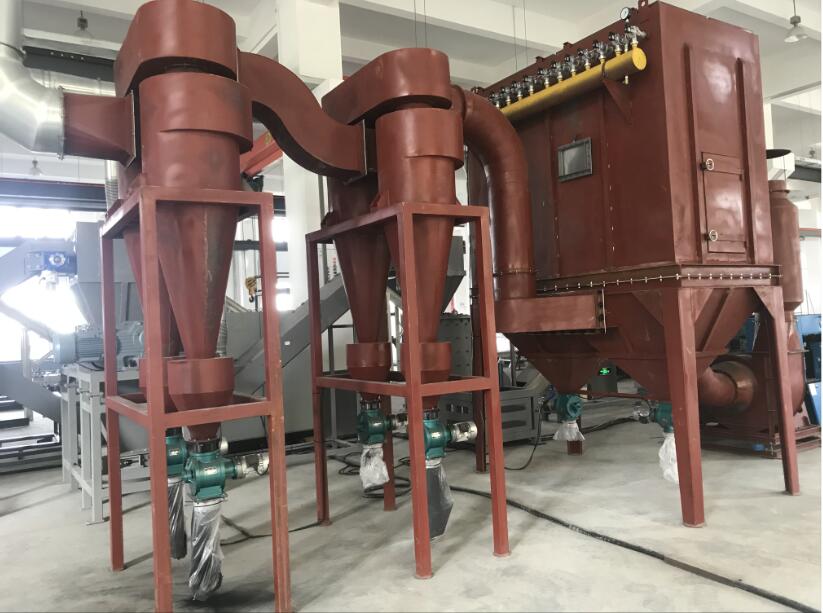

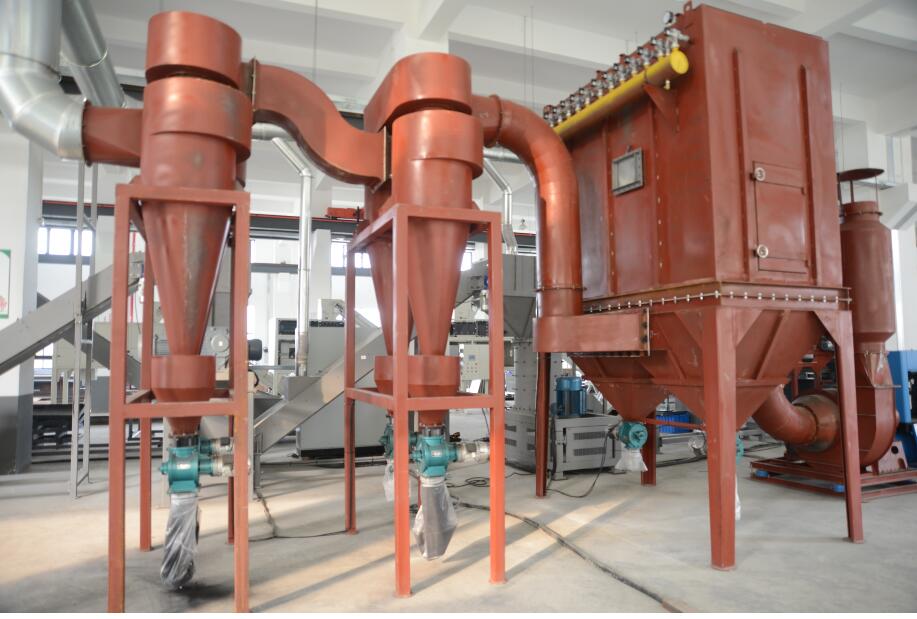

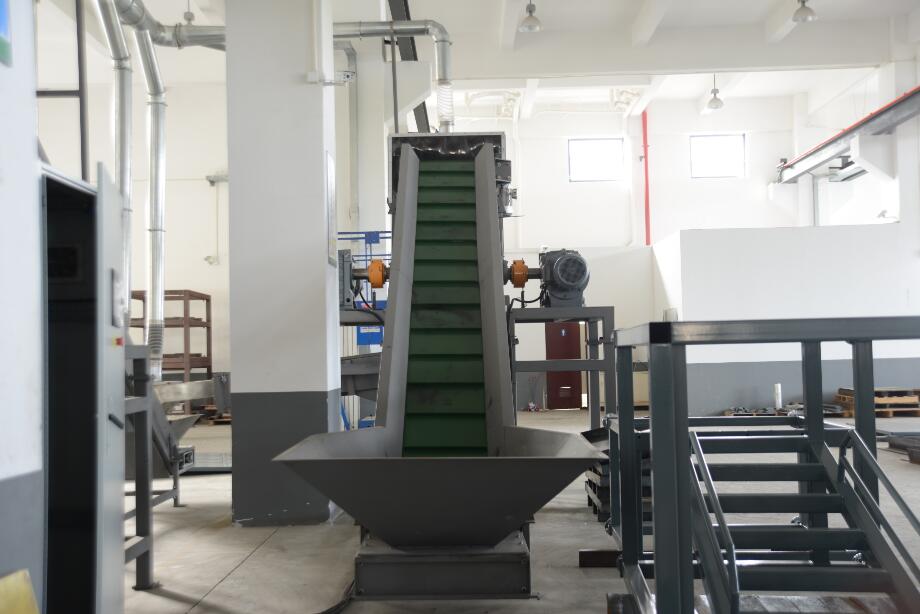

Variable frequency conveyor belt | Toner and duster collector |

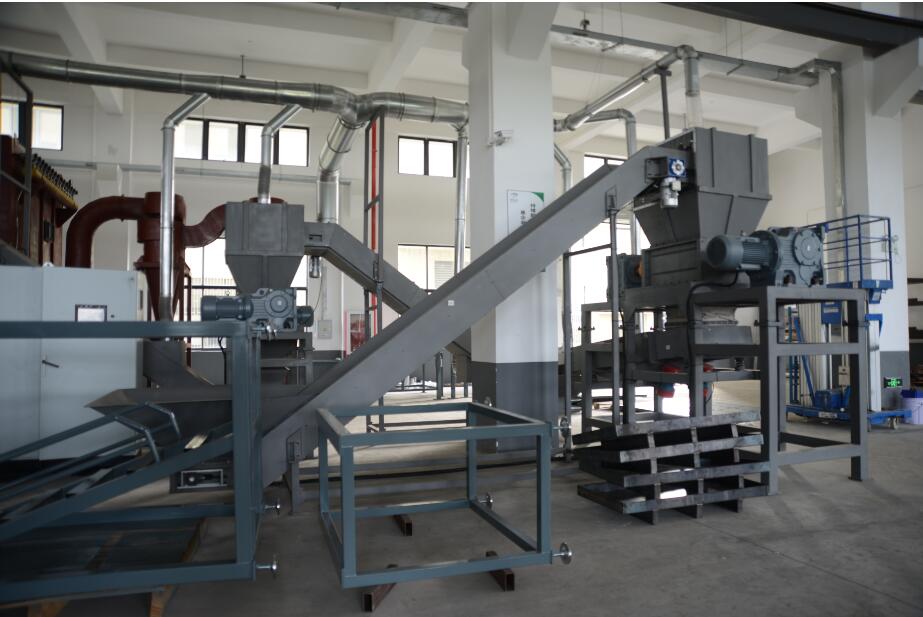

First stage two shafts shredder | Secondary shredder |

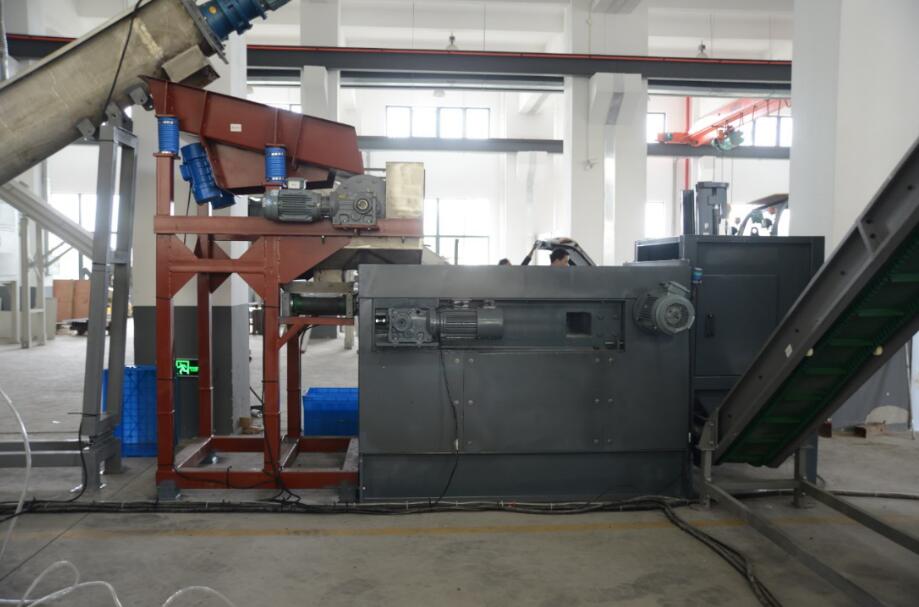

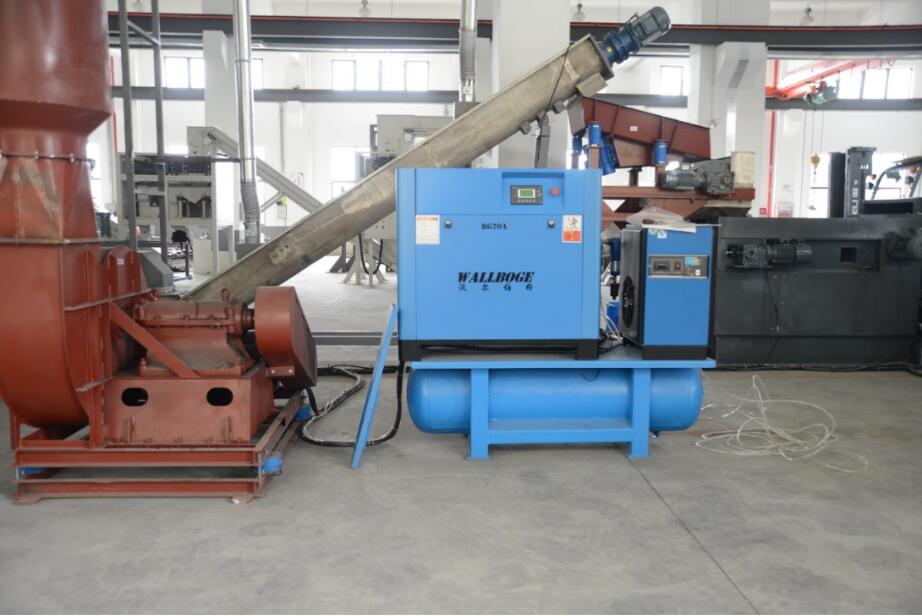

Eddy-current sorting system | Air pump |
Shredding videos
How to process
1. Variable frequency feed conveyor belt can be set different feeding speed;
2. First stage two motors shredder shredding the toner cartridges to be small piece, after shredding mixed materials <30*150mm;
3. Secondary conveyor belt carry the shredded materials from the first stage shredder to the secondary shredder;
4. Secondary Shredder shredding the mixed materials from the first shredder to the small piece < 20*50mm;
5. Three stage sealed screw conveyor carry the shredded materials from the secondary stage shredder to the eddy-current sorting system and iron removal system;
6 & 7.The eddy-current sorting system and iron removal system separates metal, aluminum and plastics and delivers them to their respective discharge bins;
8. Collect the toner powder and dust separated to different container/bag from the two shafts shredder;
9. Make the dust fall off in the dust collector;
10. With PLC control for automatic mode or manual mode for each part of machine;
Toner Cartridges Treatment
Technical Data
