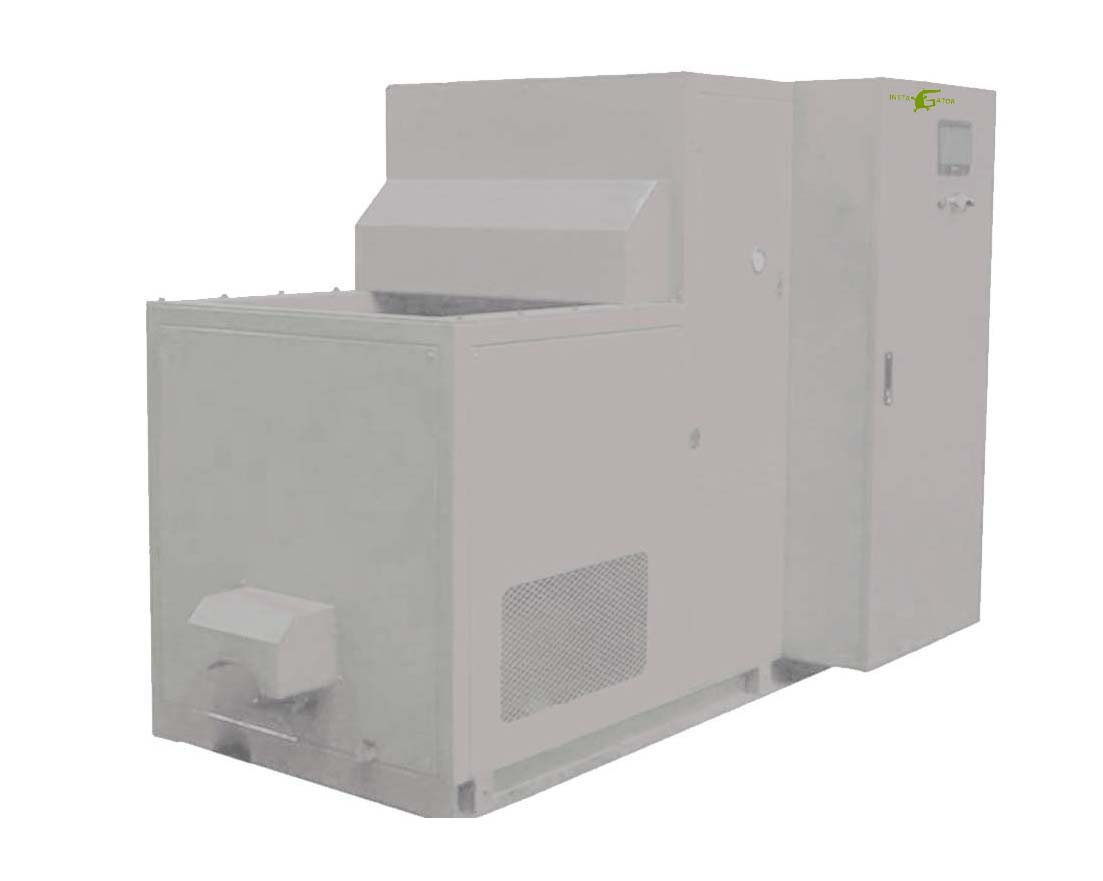

Hydraulic Metal Chip Briquetting Machine/Aluminum Chip Briquette Press Machine

Hydraulic Metal Chip Briquetting Machine/Aluminum Chip Briquette Press Machine

High Efficiency Metal Waste Hydraulic Briquetting Press Machine

Model:
SPB100T
Brand:
Gator

Availability:

Quantity:



Inquire Add to Basket

Product Description

High Efficiency Metal Waste Hydraulic Briquetting Press Machine

SUPU SPB100T Metal briquettes offer numerous advantages: Optimized storage and more efficient transport through volume reduction as well as cost-effective further processing. The briquetting process for metals also enables the recovery of expensive cooling lubricants, residual oils and emulsions, which are then fed back into the cooling or lubrication circuit. The resulting metal briquettes can be melted down directly, whereby they sink down in the melting process and thus melt with less slag formation and burn-off. The equipment also solves the footprint of the plant for stacking metal debris, saving the maximum use of space up to 40:1.

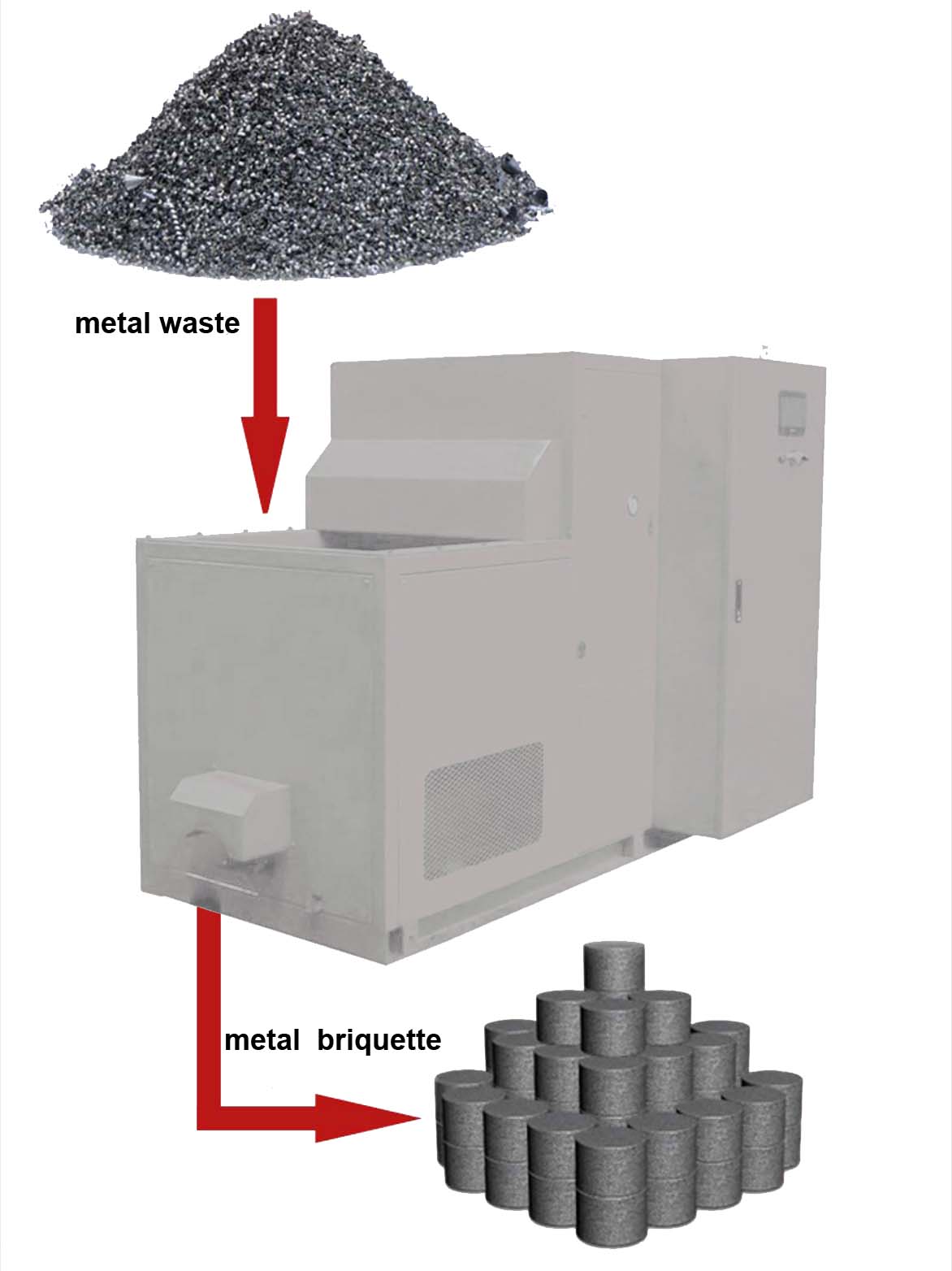

YKK1

xijei1

Technical sheet

Model	SPB100T	SPB130T	SPB130T Plus
Hydraulic briquetting press power	100 Ton	130 Ton	130 Ton
Briquette size	D75 * H50-70mm	D109 * H50-70 mm	D109 * H50-70 mm
Briquette weight	Iron,steel: 1.27 KG/EA	Iron,steel: 2.73 KG/EA	Iron,steel: 2.73 KG/EA
	Copper:1.53 KG/EA	Copper: 3.3 KG/EA	Copper: 3.3 KG/EA
	Aluminum: 0.5 KG/EA	Aluminum:1 KG/EA	Aluminum: 1KG/EA
Working capacity (Per Hour)	Iron,steel 120 KG/HR	Iron,steel 393 KG/HR	Iron,steel 1400 KG/HR
	Copper 150 KG/HR	Copper 475 KG/HR	Copper 1800 KG/HR
	Aluminum 90 KG/HR	Aluminum 144 KG/HR	Aluminum 300 -500 KG/HR
Briquette density	Iron,steel 4.8 g/cm³	Iron,steel 4.8 g/cm³	Iron,steel 4.8 g/cm³
	Copper 5.8 g/cm³	Copper 5.8 g/cm³	Copper 5.8 g/cm³
	Aluminum 1.9 g/cm³	Aluminum 1.9 g/cm³	Aluminum 1.9 g/cm³
Main motor power	7.5 KW / 380V	11 KW / 380V	22 KW / 380V
Briquetting period	25 -30 sec	25 -30 sec	11 -18 sec
Discharge bin capacity	220 L	220 L	650 L
Hydraulic oil volume	360 L	360 L	400 L
Machine size	L2155W1410H1950mm	L2155W1410H1950mm	L2275W12652H235mm
Machine weight	3000 KG	3000 KG	3000 KG

Advantages

1. Direct and efficient melting down of the metal briquettes with significantly less burn-up
2. Volume reduction of up to 90% of the starting material
3. High pressing pressure for high briquette density
4. Better residue handling
5. Minimized disposal costs
6. Reduction of transport and storage costs
7. User-friendly design
8. High ease of maintenance

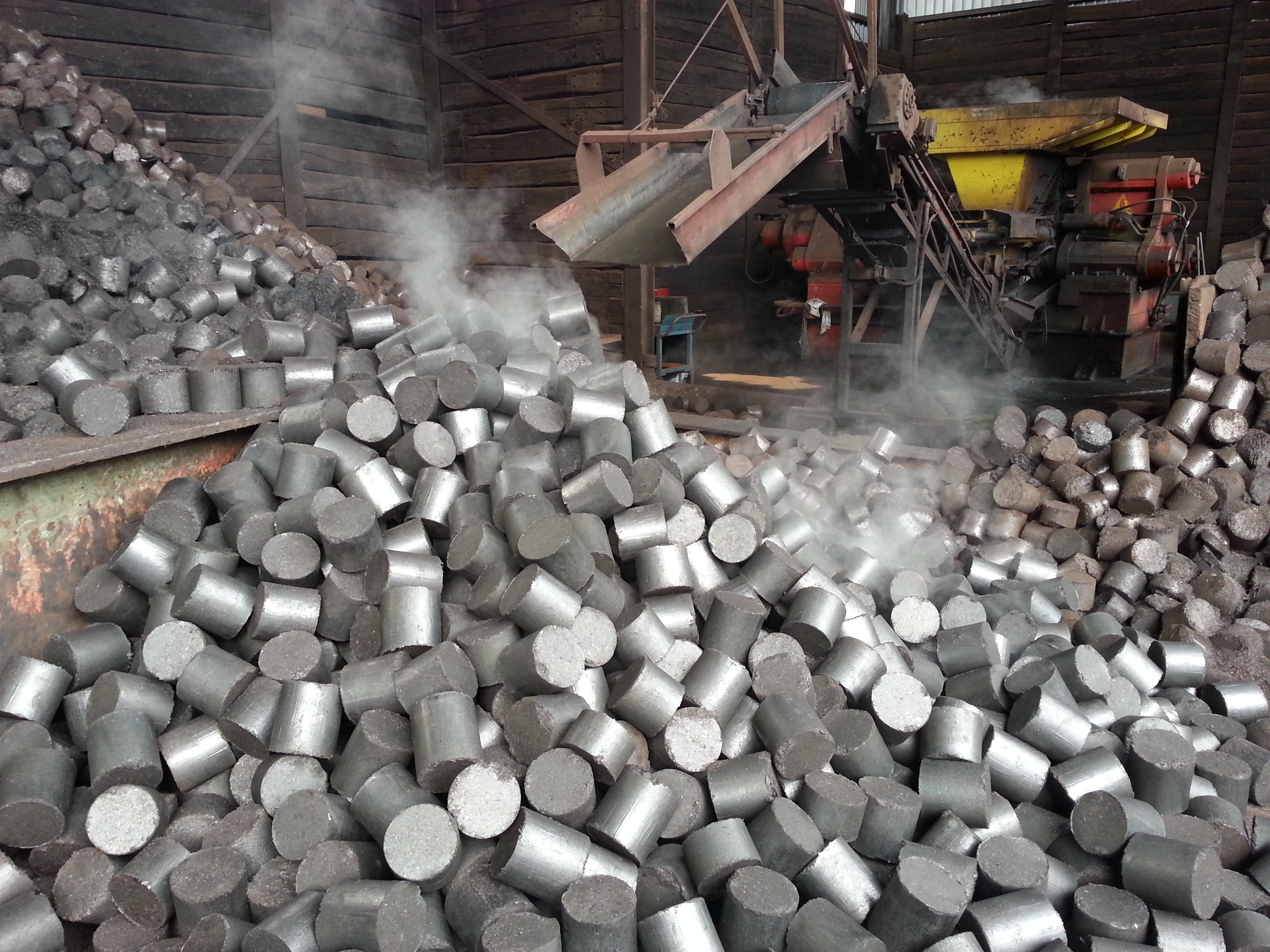

Briquetting effect

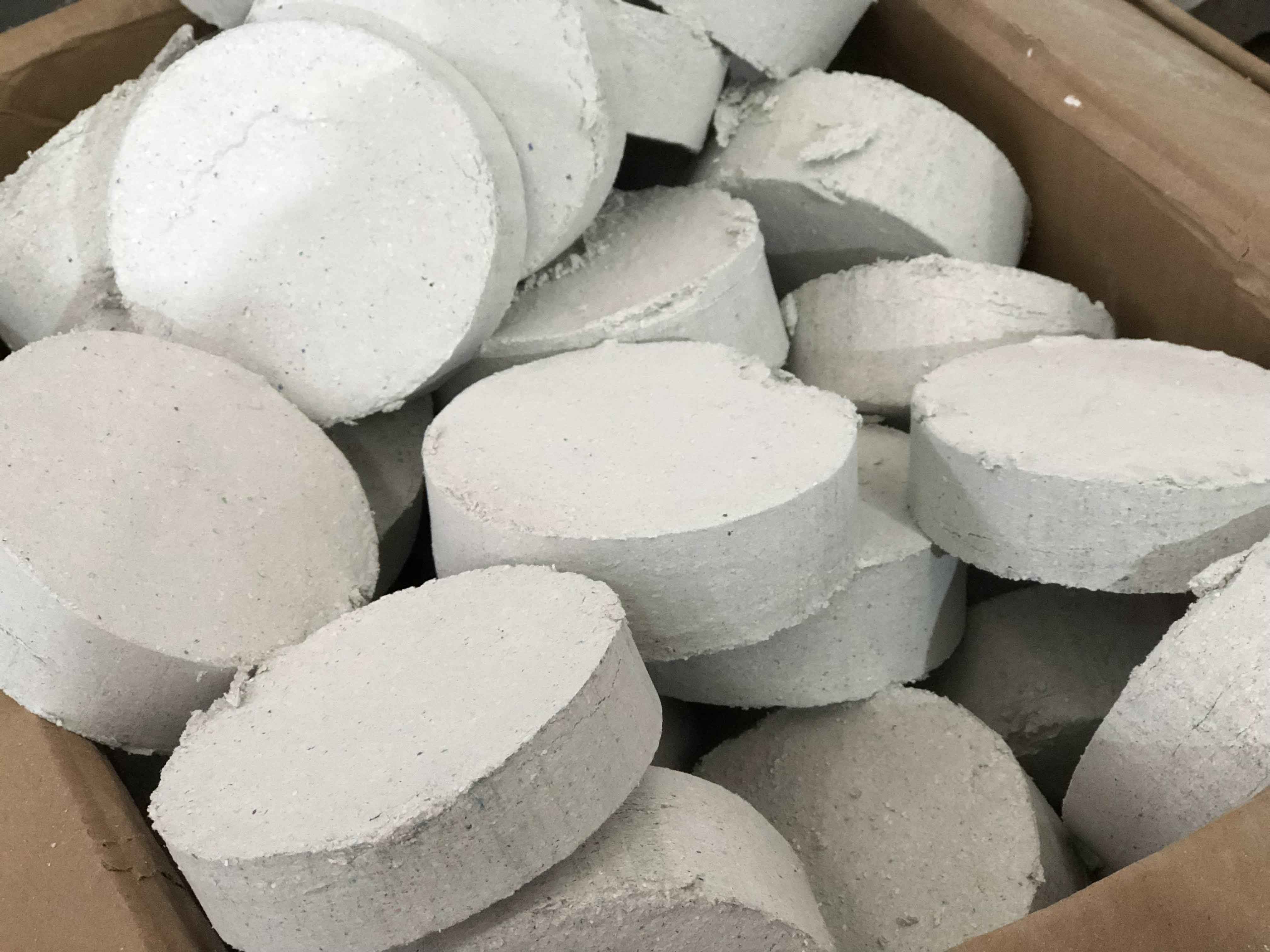

Aslo good for paper briquetting press purpose

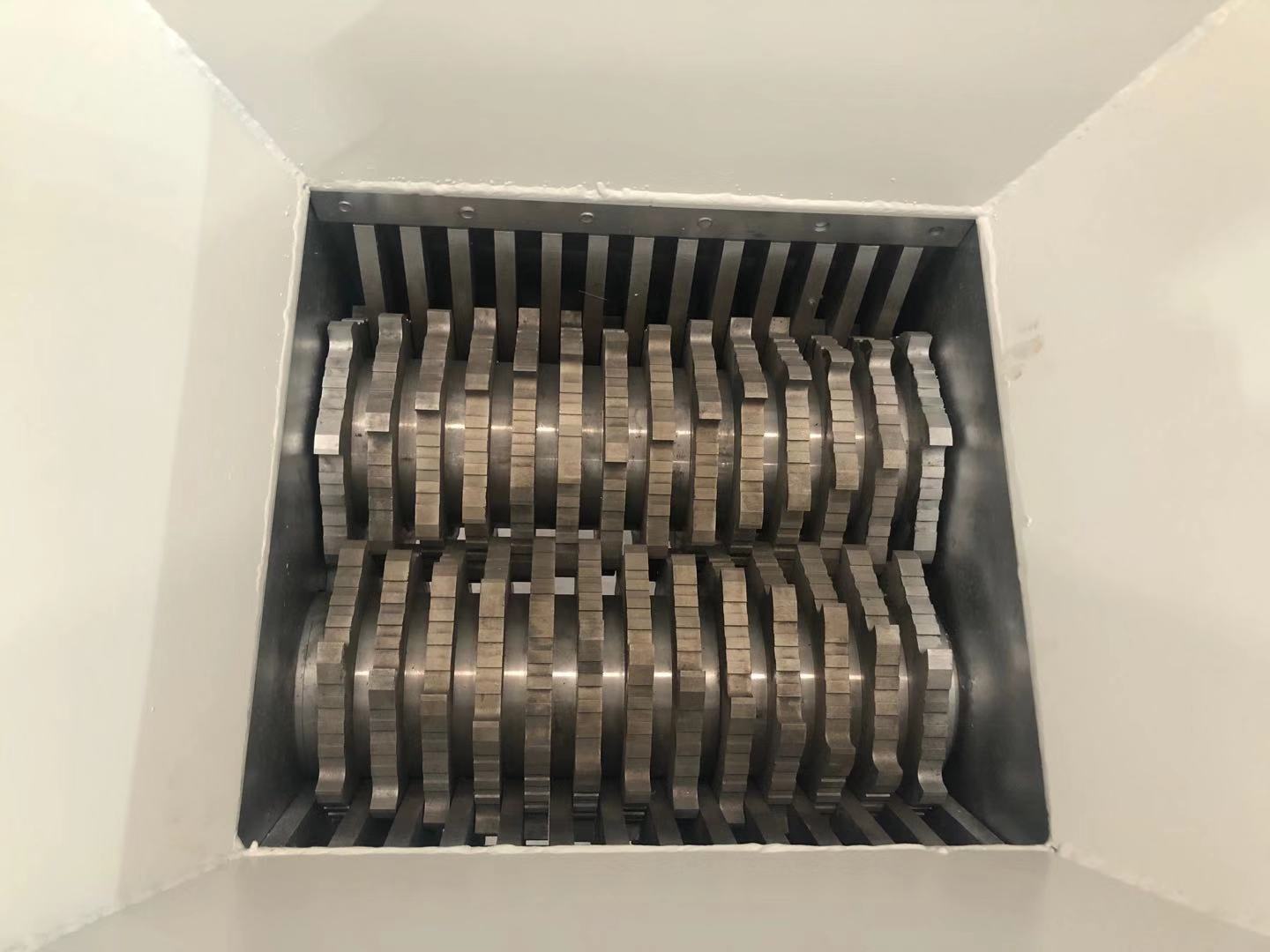

Available design Solution for shredding,crushing and briquetting combination equipment and recycling line

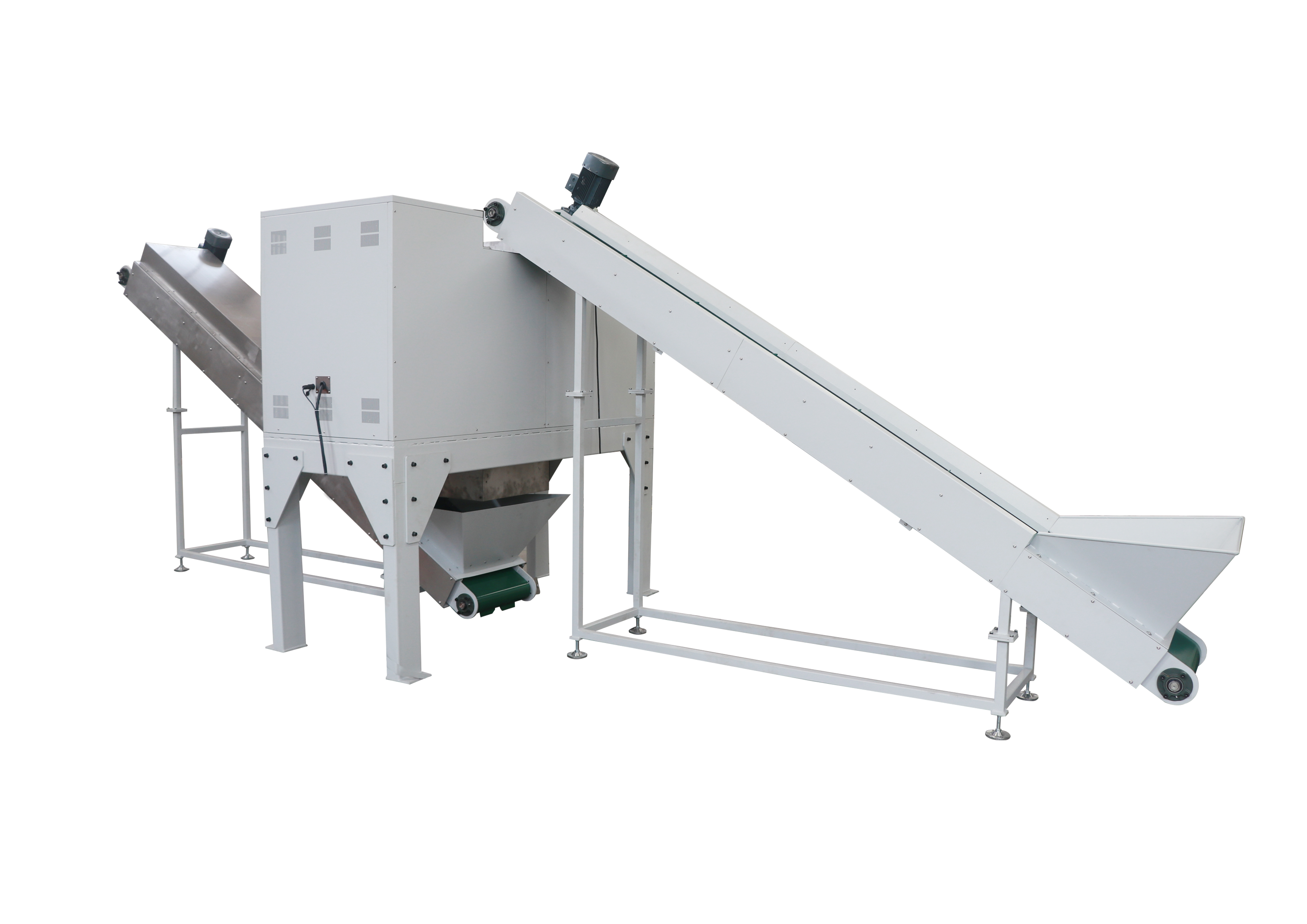

000标题-1
