Heavy Duty Strip Cut Paper Shredding And Baling Machine

Heavy Duty Strip Cut Paper Shredding And Baling Machine

High Performance Industrial cross cut paper shredding and baling machine

Model:
PDS450 & SP99
Brand:
Gator

Availability:

Quantity:



Inquire Add to Basket

Product Description

Supu Heavy Duty Paper Shredder and Baler

UPU PDS450 & SP99 Heavy duty Paper shredder and Baler，suitable for waste Paper，Document，Books，Banknotes，recycling and destruction purpose，final particle size for 9mm* 40-80mm with 600 - 1200 kg/hr working capacity，and discharge for the paper bale solution,PDS450 & SP99 contain high speed Shredding system，feeding and discharge conveyor，high efficiency hydraulic baling system， smart control PLC system.

74aaec160a5fefeb4b4806b50f45362

a8bf6e9e98e3e63b24e14401e3a0824

Specification

Model	PDS450 & SP99
Crushable Materials	Paper，books，banknote，cds
Shredder construction	Two shaft shredder
Blade construction	High Speed Cross Cut Blade
Shredding capacity	300 - 500 sheet A4 paper with file
Shredding Particles	*9mm random or customized**
Throughout per hour	600 - 1200 KG per hour
Feeding width	450 mm
Power/ Voltage	17.6KW / 380V/ 50HZ
Baling size	*500 500 * 400 -800 mm**
Machine size	6362(L) x4354(w) x 1900(H) mm

Application:

Paper，document，file，books，banknote，CD，Card etc

Advantage：

1. Two shaft shredding construction with speed control converyor

2. The frame is combinational structures, made from precision machined extra-thick sheet,slewing axis is forced, Lange-angle, hexagonal prism, , so good-sized material is practicable.

3. High level blade can easy to shred file with metal

4. PLC control system, forward and reverse operate and stop automatically can protect themachine when the materials is too big and much. Operate safely, low-speed running, lownoise, little dust.

5. With strong planetary gear box system to make the shredding power strong，improved the shredding effect.

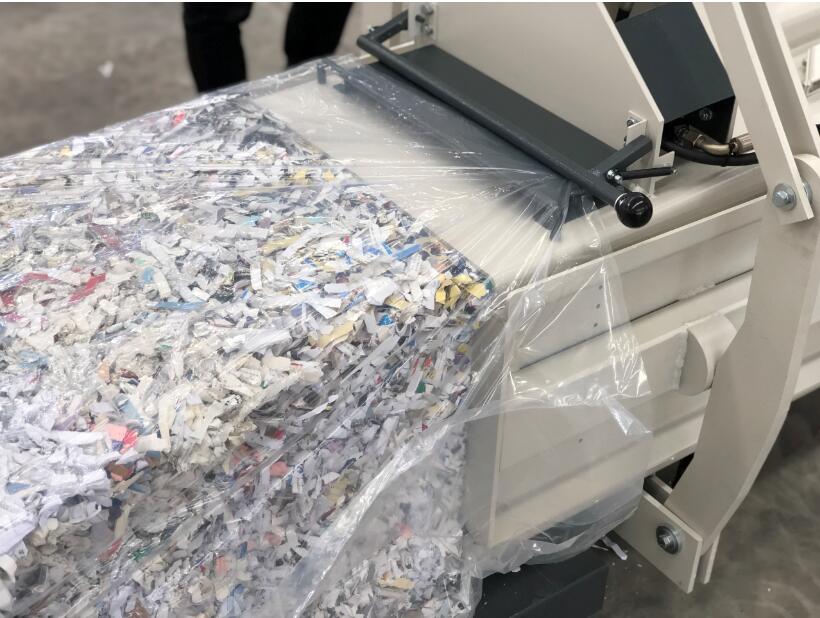

Shredding effect：
